Evaluation of machine learning methods for prediction of heart failure mortality and readmission: meta-analysis

Abstract

Background

Heart failure (HF) impacts nearly 6 million individuals in the U.S., with a projected 46% increase by 2030, is creating significant healthcare burdens. Predictive models, particularly machine learning (ML)-based models, offer promising solutions to identify patients at greater risk of adverse outcomes, such as mortality and hospital readmission. This review aims to assess the effectiveness of ML models in predicting HF-related outcomes, with a focus on their potential to improve patient care and clinical decision-making. We aim to assess how effectively machine learning models predict mortality and readmission in heart failure patients to improve clinical outcomes.

Method

The study followed PRISMA 2020 guidelines and was registered in the PROSPERO database (CRD42023481167). We conducted a systematic search in PubMed, Scopus, and Web of Science databases using specific keywords related to heart failure, machine learning, mortality and readmission. Extracted data focused on study characteristics, machine learning details, and outcomes, with AUC or c-index used as the primary outcomes for pooling analysis. The PROBAST tool was used to assess bias risk, evaluating models based on participants, predictors, outcomes, and statistical analysis. The meta-analysis pooled AUCs for different machine learning models predicting mortality and readmission. Prediction accuracy data was categorized by timeframes, with high heterogeneity determined by an I² value above 50%, leading to a random-effects model when applicable. Publication bias was assessed using Egger’s and Begg’s tests, with a p-value below 0.05 considered significant

Result

A total of 4,505 studies were identified, and after screening, 64 were included in the final analysis, covering 943,941 patients. Of these, 40 studies focused on mortality, 17 on readmission, and 7 on both outcomes. In total, 346 machine learning models were evaluated, with the most common algorithms being random forest, logistic regression, and gradient boosting. The neural network model achieved the highest overall AUC for mortality prediction (0.808), while the support vector machine performed best for readmission prediction (AUC 0.733). The analysis revealed a significant risk of bias, primarily due to reliance on retrospective data and inadequate sample size justification.

Conclusion

In conclusion, this review emphasizes the strong potential of ML models in predicting HF readmission and mortality. ML algorithms show promise in improving prognostic accuracy and enabling personalized patient care. However, challenges like model interpretability, generalizability, and clinical integration persist. Overcoming these requires refined ML techniques and a robust regulatory framework to enhance HF outcomes.

Introduction

Heart failure (HF) is a complex condition characterized by the heart’s inability to adequately pump blood and oxygen to sustain other organs, as defined by the US Centers for Disease Control and Prevention which is highly prevalent in the United States [1], affecting nearly 6 million Americans aged elder than 20 years [2]. By the year 2030, it is anticipated that the prevalence of this condition will surge by 46%, surpassing the 8 million marks [3]. This rising prevalence places a substantial burden on healthcare systems and underscores the need for improved management strategies.

One of the most critical challenges in HF care is the high rate of readmissions and mortality.

Elevated rates of readmission and mortality often signal inadequate care during the initial hospitalization and discharge planning process leading to detrimental effects on patient health and well-being [4]. Thus, forecasting the mortality of heart failure patients holds significant importance for various reasons, such as enhancing the quality of care, mitigating healthcare expenses, optimizing resource distribution, and ultimately improving patient outcomes [5].

Predictive models have the potential to transform HF care by helping clinicians identify patients at the highest risk of adverse outcomes, such as death or readmission. Despite their potential benefits, predictive models for readmission and mortality after heart failure (HF) hospitalization often exhibit unsatisfactory performance compared to models predicting mortality. This performance gap underscores the need for further research and refinement to improve the accuracy and reliability of readmission prediction models in HF care settings [6].

In recent years, machine learning (ML) and artificial intelligence (AI) have gained prominence in healthcare due to their ability to analyze complex data and detect patterns that may not be apparent with traditional methods.

ML models, in particular, have demonstrated superior performance in predicting HF-related outcomes, with 76% of studies reporting better results compared to conventional statistical models. Leveraging ML to develop more accurate predictive models could significantly enhance the care of HF patients by providing clinicians with powerful tools to anticipate risks and make more informed treatment decisions [7, 8].

In this systematic review and meta-analysis, we aim to evaluate the effectiveness of ML-based predictive models for forecasting mortality and readmission in HF patients, providing insights into their potential to improve clinical outcomes.

Method

This study was conducted according to the criteria of Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA 2020) [9]. To ensure transparency and adherence to planned methods, the study protocol was prospectively registered with PROSPERO, an international database for systematic reviews (CRD42023481167).

Search strategy

PubMed, Scopus, and Web of Science were searched systemically up to November 11, 2023. To identify all pertinent studies, we employed a combination of standardized medical terminology (MeSH headings) and normal search terms. The tree main keywords with their synonyms and similarities was as follows:1. “Heart Failure” OR “congestive heart failure” OR “cardiac failure” OR “heart decompensation” OR “myocardial failure” 2. “Machine Learning” OR “artificial intelligence” OR “artificial neural network” OR “deep learning” OR “prediction model” 3. “Mortality” OR “death” OR “fatality” OR “survival” OR “admission” OR “readmission” OR “Rehospitalization”. The detailed search strategy for each database is available in additional file.

The inclusion criteria for this study were as follows: studies investigating the apply of machine learning models on heart failure patients, studies investigating on mortality or readmission or both, and studies written in English.

We excluded studies conducted in a non-English language or in the case of full-text unavailability. Also, all the other types of study except original studies with a detailed machine learning evaluation were excluded.

Data extraction

Four reviewers separated into two groups, independently extracted data from the included studies into a pre-defined form, and any dissimilarity was resolved by the first author. The Extracted data can be divided into three main categories: (1) Study characteristics (Author, year, country, age, sex, population, heart failure type) (2) Machine learning details (model type, predictive variables, test-train split, evaluation metric) (3) Outcomes. Because the most common type of reported outcome was AUC or c-index, we decided to consider this variable as our main outcomes for the pooling analysis. However, sensitivity, specificity, and accuracy were also analyzed. When a study explores multiple models, or even in different time-framing, we extracted the data pertaining to each model and timeframe individually. In case of reporting different number of predictive variables, we just considered the one included in the final operated model.

Quality assessment

To evaluate the risk of bias of the included models, PROBAST assessment tool was utilized [10]. The defined questionnaire contains 20 questions categorized into four domains: participants, predictors, outcomes, and statistical analysis. On the basis of pre-defined answers (“yes”, “probably yes”, “no”, “may or may not”, and “no information), the models were evaluated as low risk, high risk, or unclear risk of bias. The same four reviewers which did the data extraction were also responsible, and any conflicts was concluded by a third party.

Data analysis

The meta-analysis was conducted using STATA 17 to pool the AUCs of various machine learning models designed to predict the mortality and readmission of HF patients. It has to be mentioned that the data of different deep learning models was pooled due to the low number of studies employing each specific deep learning model.

Prediction accuracy data for each model were reported over different time periods in some studies. To ensure comparability, we selected and pooled data with similar prediction periods. For mortality prediction accuracies, the data were categorized as follows: “under 1-year”, “1-year”, “more than 1-year”, and “overall”. In the “overall” category, one prediction data point per model from each study was selected and pooled, preferably data around the 1-year mark. The categories for readmission prediction data were similar to those for mortality, with the distinction that the “under 1-year” and “1-year” categories were merged.

Finally, the mean and standard error (SE) of the AUCs of the models from the included studies were extracted and pooled. Also, other evaluation metrics including sensitivity, specificity, and accuracy were pooled. Heterogeneity in the meta-analyses was assessed using the I² statistic. An I² value greater than 50% indicated high heterogeneity, in which case a random-effects model was employed for the analysis. Publication bias was evaluated using Egger’s regression test and Begg’s test. A p-value less than 0.05 was considered statistically significant.

Result

Screening results

In total, 4505 articles were gathered through a systematic search in three databases. By removing 1226 duplicate papers, a total of 3279 papers were included for the first screen. Following that, by screening the titles and abstracts, 180 papers were chosen to be reviewed through full texts. Finally, 64 papers were qualified to be included in the study. The screening process is illustrated in Fig. 1.

Characteristics of studies

Out of the 64 studies reviewed, mortality was the primary outcome investigated in 40 papers [11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50], while readmission was the sole focus of 17 papers [51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67]. Seven studies [68,69,70,71,72,73,74] examined both mortality and readmission. This study examined a total of 943,941 patients. Among them, the mortality group accounted for 741,050 cases (78.51%), while the readmission group comprised 202,891 patients (21.49%). Except for six studies [14, 30, 57, 58, 60, 61], all the other papers were published after 2020. In terms of the origins of publications, the USA had 22 papers, and China had 18 papers. Entirely, 346 machine learning models were developed, including 225 and 121 models for mortality and readmission, respectively. The algorithms by order of prevalence were as follows: random forest (n = 74), logistic regression (n = 69), gradient boosting (n = 62), support vector machine (n = 43), neural network (n = 32), decision tree (n = 16), lasso regression (n = 15), KNN (n = 10), Bayesian network (n = 7), and others (n = 18). Samples of studies were acquired from a total of four origins: public databases (n = 22), national data registries (n = 18), clinical trials (n = 13), and electronic health records(n = 11). The table presenting key characteristics of studies is available in additional files.

Quality assessments

PRPBAST was used to evaluate the risk of bias in all models. Many machine learning models in this analysis were susceptible to bias. This was primarily caused by two factors: (1) a heavy reliance on studies with retrospective data, where participants were enrolled after the event of interest had occurred, and (2) a lack of sample size justification. In Fig. 2, we illustrated risk assessments divided into four domains.

Meta-analysis of prediction models

AUC for the prediction of mortality – overall

The results of our meta-analyses revealed that the “Neural network” model, based on 13 included studies, had the best AUC for the prediction of mortality in the HF patients with the pooled AUC of 0.808 [95% CI: 0.754–0.863]. Also, the “Gradient boosting” model, based on 30 included studies, had a pooled AUC of 0.796 [95% CI: 0.746–0.845], which was approximately similar to the neural network model. The lowest pooled AUC belonged to the “K-nearest neighbors” model, based on 5 included studies, with a pooled AUC of 0.571 [95% CI: 0.532–0.611]. The results of the pooled AUCs of all of the models are reported in Table 1; Figs. 3 and 4.

Table 1 Pooled AUCs of mortality prediction algorithms

AUC for the prediction of mortality – under 1-year

The results of our meta-analyses showed that the “Neural network” model, based on 4 included studies, had the best AUC for the prediction of mortality in the HF patients with the pooled AUC of 0.829 [95% CI: 0.788–0.871]. Also, the “Gradient boosting” model, based on 10 included studies, had a pooled AUC of 0.817 [95% CI: 0.792–0.843], which was approximately similar to the “Neural network” model. The lowest pooled AUC belonged to the “Decision tree” model, based on 5 included studies, with a pooled AUC of 0.681 [95% CI: 0.583–0.778]. The results of the pooled AUCs of all of the models are reported in Table 1.

AUC for the prediction of mortality – 1-year

The results of our meta-analyses showed that the “Gradient boosting” model, based on 5 included studies, had the best AUC for the prediction of mortality in the HF patients with the pooled AUC of 0.820 [95% CI: 0.765–0.875]. The lowest pooled AUC belonged to the “Support vector machine” model, based on 5 included studies, with a pooled AUC of 0.689 [95% CI: 0.583–0.795]. The results of the pooled AUCs of all of the models are reported in Table 1.

AUC for the prediction of mortality – more than 1-year

The results of our meta-analyses showed that the “Neural network” model, based on 2 included studies, had the best AUC for the prediction of mortality in the HF patients with the pooled AUC of 0.798 [95% CI: 0.767–0.828]. Also, Among the models with more than 3 included studies, the “Logistic regression” and “Random Forest” models, based on 5 included studies, had a pooled AUC of 0.687 [95% CI: 0.623–0.751] and 0.682 [95% CI: 0.630–0.735], respectively, which were lower than the “Neural network” model. The lowest pooled AUC belonged to the “Support vector machine” model, based on 5 included studies, with a pooled AUC of 0.642 [95% CI: 0.583–0.778]. The results of the pooled AUCs of all of the models are reported in Table 1.

AUC for the prediction of mortality – not specific

We pooled the data of studies that did not report specific periods for mortality. The results of our meta-analyses showed that the “Neural Network” model, based on 6 included studies, had the best AUC for the prediction of mortality in the HF patients with the pooled AUC of 0.851 [95% CI: 0.796–0.905]. The lowest pooled AUC belonged to the “Support vector machine” model, based on 9 included studies, with a pooled AUC of 0.718 [95% CI: 0.578–0.857]. The results of the pooled AUCs of all of the models are reported in Table 1.

Other metrics for the prediction of mortality – overall

The performance of various machine learning models to predict mortality was also evaluated based on accuracy, sensitivity, and specificity (Table 2).

Table 2 Pooled analysis of other evaluation metrics (accuracy, sensitivity, specificity) for mortality prediction

For accuracy, the Decision Tree (N = 2) achieved the highest performance with an AUC of 0.810 (95% CI: 0.504–1.117), followed by Support Vector Machine (SVM) (N = 8) with an AUC of 0.743 (95% CI: 0.694–0.791) and Gradient Boosting (N = 12) with an AUC of 0.706 (95% CI: 0.467–0.945). Random Forest (N = 15) and Logistic Regression (N = 10) showed moderate accuracy, with AUC values of 0.600 (95% CI: 0.415–0.786) and 0.576 (95% CI: 0.366–0.786), respectively. K-Nearest Neighbors (KNN) (N = 2) had an AUC of 0.601 (95% CI: 0.576–0.627), while Neural Network (N = 4) exhibited the lowest accuracy with an AUC of 0.441 (95% CI: 0.061–0.820). Similarly, Lasso Regression (N = 4) performed poorly with an AUC of 0.413 (95% CI: 0.079–0.747). Bayesian Network (N = 1) did not provide sufficient data for evaluation. The forest plots of some models are presented in Figs. 5 and 6.

For sensitivity, Lasso Regression (N = 2) had the highest AUC of 0.776 (95% CI: 0.564–0.988), followed by Gradient Boosting (N = 12) with an AUC of 0.678 (95% CI: 0.527–0.829). Random Forest (N = 12) and Neural Network (N = 3) demonstrated moderate sensitivity, with AUC values of 0.619 (95% CI: 0.547–0.691) and 0.623 (95% CI: 0.503–0.743), respectively. Logistic Regression (N = 9) and Support Vector Machine (SVM) (N = 7) showed comparable sensitivity, with AUC values of 0.592 (95% CI: 0.508–0.676) and 0.590 (95% CI: 0.492–0.687), respectively. Decision Tree (N = 3) had an AUC of 0.609 (95% CI: 0.224–0.994), whereas K-Nearest Neighbors (KNN) (N = 2) had the lowest sensitivity with an AUC of 0.339 (95% CI: 0.314–0.364). Bayesian Network (N = 0) did not provide data for sensitivity evaluation. The forest plots of some models are presented in Fig. 7.

For specificity, Neural Network (N = 3) achieved the highest AUC of 0.774 (95% CI: 0.657–0.891), followed by Support Vector Machine (SVM) (N = 5) with an AUC of 0.761 (95% CI: 0.572–0.950) and Gradient Boosting (N = 8) with an AUC of 0.757 (95% CI: 0.664–0.850). Random Forest (N = 8) and Logistic Regression (N = 7) performed similarly, with AUC values of 0.755 (95% CI: 0.704–0.806) and 0.745 (95% CI: 0.685–0.805), respectively. Lasso Regression (N = 2) demonstrated moderate specificity with an AUC of 0.701 (95% CI: 0.610–0.793), while K-Nearest Neighbors (KNN) (N = 2) had a lower specificity of 0.685 (95% CI: 0.592–0.778). Decision Tree (N = 1) did not provide sufficient specificity data. Bayesian Network (N = 0) also lacked specificity data for evaluation. The forest plots of some models are presented in Fig. 8.

AUC for the prediction of the readmission – overall

The results of our meta-analyses revealed that the “Support vector machine” model, based on 10 included studies, had the best AUC for the prediction of readmission in the HF patients with the pooled AUC of 0.726 [95% CI: 0.639–0.813]. Also, the “Gradient boosting” model, based on 18 included studies, had a pooled AUC of 0.703 [95% CI: 0.649–0.758], which was less accurate than the “Support vector machine” model but included more studies. The lowest pooled AUC belonged to the “Decision tree” model, based on 3 included studies, with a pooled AUC of 0.618 [95% CI: 0.558–0.679]. The results of the pooled AUCs of all of the models are reported in Table 3; Figs. 9 and 10.

Table 3 Pooled AUCs of readmission prediction algorithms

AUC for the prediction of the readmission – under 1-year

The results of our meta-analyses revealed that the “Support vector machine” model, based on 3 included studies, had the best AUC for the prediction of readmission in the HF patients with the pooled AUC of 0.764 [95% CI: 0.617–0.910]. The lowest pooled AUC belonged to the “Neural Network” model, based on 3 included studies, with a pooled AUC of 0.580 [95% CI: 0.558–0.602]. The results of the pooled AUCs of all of the models are reported in Table 3.

AUC for the prediction of the readmission – 1 year and more

The results of our meta-analyses revealed that the “Random Forest” model, based on 4 included studies, had the best AUC for the prediction of readmission in the HF patients with the pooled AUC of 0.721 [95% CI: 0.614–0.828]. The lowest pooled AUC belonged to the “Logistic regression” model, based on 3 included studies, with a pooled AUC of 0.649 [95% CI: 0.535–0.763]. The results of the pooled AUCs of all of the models are reported in Table 3.

AUC for the prediction of the readmission – not specific

We pooled the data from studies that did not report specific periods for readmission to the hospital. The results of our meta-analyses revealed that the “Gradient boosting” model, based on 9 included studies, had the best AUC for the prediction of readmission in the HF patients with the pooled AUC of 0.767 [95% CI: 0.697–0.836]. The lowest pooled AUC belonged to the “Neural Network” model, based on 4 included studies, with a pooled AUC of 0.671 [95% CI: 0.512–0.830]. The results of the pooled AUCs of all of the models are reported in Table 3.

Other metrics for the prediction of readmission – overall

The pooled analysis of various machine learning models for readmission prediction was also evaluated using accuracy, sensitivity, and specificity metrics (Table 4).

Table 4 Pooled analysis of other evaluation metrics (accuracy, sensitivity, specificity) for readmission prediction

For accuracy, the Support Vector Machine (SVM) model, based on 3 included studies, achieved the highest AUC of 0.833 [95% CI: 0.696–0.970], followed by the Gradient Boosting model, based on 6 included studies, with an AUC of 0.782 [95% CI: 0.683–0.882]. The Random Forest model, based on 5 included studies, showed moderate accuracy with an AUC of 0.736 [95% CI: 0.573–0.898], while K-Nearest Neighbors (KNN), based on 2 included studies, had an AUC of 0.668 [95% CI: 0.379–0.957]. The lowest accuracy was observed for Logistic Regression, based on 4 included studies, with an AUC of 0.590 [95% CI: 0.532–0.649].

For sensitivity, the Support Vector Machine (SVM) model, based on 2 included studies, had the highest AUC of 0.835 [95% CI: 0.767–0.903], followed closely by the Random Forest model, based on 4 included studies, with an AUC of 0.801 [95% CI: 0.689–0.912]. The Gradient Boosting model, based on 4 included studies, showed an AUC of 0.756 [95% CI: 0.669–0.842], while K-Nearest Neighbors (KNN) had a lower sensitivity of 0.656 [95% CI: 0.370–0.942]. The lowest sensitivity was observed for Logistic Regression, based on 4 included studies, with an AUC of 0.560 [95% CI: 0.406–0.713].

For specificity, the Support Vector Machine (SVM) model again achieved the highest AUC of 0.950 [95% CI: 0.852–1.049], followed by the Gradient Boosting model, based on 3 included studies, with an AUC of 0.885 [95% CI: 0.755–1.015]. The Random Forest model, based on 4 included studies, had an AUC of 0.797 [95% CI: 0.527–1.066], while Logistic Regression, based on 4 included studies, had an AUC of 0.615 [95% CI: 0.541–0.689]. The specificity of K-Nearest Neighbors (KNN) was not available due to insufficient data.

Discussion

In this systematic review, we discovered that machine learning models are able to strongly predict readmission and mortality outcomes in HF. Our analysis included 64 studies, encompassing a total of 943,941 patients, with 346 machine learning models developed for mortality and readmission predictions. Notably, neural network models demonstrated the highest predictive accuracy for overall mortality with a pooled AUC of 0.808, followed closely by gradient boosting models with a pooled AUC of 0.796. In contrast, logistic regression and decision tree models showed lower predictive performance. To predict the overall readmission, the support vector machine model showed the highest pooled AUC of 0.726. On the other hand, the decision tree model with a pooled AUC of 0.618 had the lowest predictive ability. These findings underscore the potential of machine learning algorithms to enhance prognostic accuracy in HF, thereby facilitating more personalized and effective patient management strategies.

Heart failure symptoms as predictors of risk: clinical implications

HF is a complex clinical syndrome characterized by the heart’s inability to maintain adequate blood circulation, leading to symptoms such as dyspnea, fatigue, and fluid retention [75]. These symptoms are not only indicative of the disease’s presence but also serve as critical predictors of patient risk and prognosis [76]. For instance, the severity of dyspnea correlates strongly with mortality and hospitalization rates [77]. Additionally, biomarkers like natriuretic peptides, which reflect cardiac stress and fluid overload, are valuable in predicting adverse outcomes [78]. Understanding and quantifying these symptoms and biomarkers enable clinicians to stratify risk more accurately, guiding therapeutic decisions and improving patient management in HF [79]. Identification of these biomarkers may additionally lead to the generation of more accurate ML models.

Existing prognostic tools for heart failure: the role of GRACE and beyond

Current predictive tools for HF, such as the Global Registry of Acute Coronary Events (GRACE) score and the TIMI score, have been instrumental in advancing the prognosis of HF by incorporating a wide range of clinical parameters [80, 81]. The GRACE score, which includes variables like age, heart rate, and creatinine levels, has been validated across diverse populations and has shown robust performance in predicting mortality and adverse events in HF patients [82]. However, despite its strengths, the GRACE model and similar traditional tools often face limitations in handling the complexity and heterogeneity of HF data [83]. ML models, on the other hand, offer significant improvements by integrating diverse data sources and identifying complex and non-linear patterns that are not apparent through conventional methods [84]. This capability allows ML models to provide more accurate and personalized predictions, thereby enhancing clinical decision-making and patient outcomes in HF management.

Superiority of machine learning models over traditional prognostic methods

ML models have demonstrated significant superiority over traditional methods in predicting HF prognosis due to their ability to handle large and complex datasets, identify intricate patterns, and continuously improve with more data. Unlike conventional methods, which often rely on static and limited clinical variables, ML models can integrate diverse data sources, including genetic information, biomarkers, and patient-reported outcomes, leading to more accurate and personalized predictions [85]. Additionally, ML models exhibit enhanced discrimination and risk stratification capabilities, which are crucial for effective clinical decision-making [86]. This improved performance underscores the potential of ML models to revolutionize HF management by providing more reliable and actionable insights.

About neural network models

Studies have shown that ML algorithms, such as neural networks and deep learning models, outperform traditional models in predicting HF outcomes [87, 88]. These advanced models can automatically learn and extract complex patterns from large, high-dimensional datasets, which is often challenging for traditional models. For instance, deep learning models excel at handling unstructured data such as medical images, clinical notes, and time-series data from wearable devices, enabling a more comprehensive analysis [89]. This ability to integrate and analyze diverse data sources leads to more accurate and personalized predictions. Furthermore, neural networks can capture non-linear relationships and complex interactions between variables, which are frequently overlooked by traditional models [88]. This results in enhanced predictive performance and better identification of high-risk patients, ultimately facilitating more effective and timely interventions. The application of these models in real-world data scenarios underscores their potential to revolutionize the field of medical prognosis and improve patient outcomes significantly.

Limitations of current predictive models

Current machine-learning predictive models for HF prognosis in clinical settings face several significant limitations. The interpretability of some of these models such as neural networks is a concern, as they often do not provide clear insights into the underlying factors driving the predictions, making it difficult for clinicians to apply the results effectively in practice [90]. To address these challenges, explainable AI (XAI) techniques have emerged as potential solutions. These methods aim to make AI systems more transparent and understandable by elucidating how input features influence predictions. Techniques such as SHAP (Shapley Additive Explanations), LIME (Local Interpretable Model-Agnostic Explanations), and Grad-CAM (Gradient-weighted Class Activation Mapping) provide visual or quantitative insights into model behavior [91]. Additionally, inherently interpretable models, such as decision trees and linear regression, or hybrid approaches combining black-box and white-box methods, offer a trade-off between accuracy and explainability [91]. Implementing XAI techniques, from data preprocessing to post-modeling explainability, ensures a more robust and communicable system. Such advancements are essential for fostering clinician trust, improving patient outcomes, and ensuring ethical compliance in clinical decision support systems (CDSS) [91].Furthermore, the generalizability of these models is limited due to variations in etiologies and clinical presentations [90]. Despite advancements in machine learning and artificial intelligence, the performance of these models often remains modest, with C-statistics rarely exceeding 0.8 [92]. Additionally, several critical concerns, such as the roles of physicians and patients in decision-making, issues of reliability, transparency, accountability, liability, data privacy, biases, monitoring of AI-related adverse events, cybersecurity, and system updates have raised skepticism about adopting AI algorithms in clinical practice [86]. Addressing these barriers in implementing ML in clinical practice requires a multifaceted approach. Robust data governance frameworks, such as compliance with General Data Protection Regulation (GDPR) and Health Insurance Portability and Accountability Act (HIPAA), should be enforced to ensure patient data is securely stored, anonymized, and used only with informed consent [93, 94]. Transparency in algorithm design, including documentation of training data sources and model assumptions, can help mitigate biases stemming from unrepresentative or skewed datasets [95]. Encouraging diverse, multicenter collaborations for data collection can enhance inclusivity and reduce disparities in ML outcomes [96]. Additionally, implementing XAI methodologies will foster trust and accountability in clinical applications [94]. Therefore, implementing ML algorithms in clinical practice is a complex process that necessitates a comprehensive regulatory framework for their research, development, and adoption in medicine [86]. These limitations underscore the need for more robust, interpretable, and dynamic predictive models to improve the prediction of HF prognosis in clinical practice.

Limitations

Our study, while comprehensive, has several limitations that should be acknowledged. Firstly, the reliance on retrospective data in many of the included studies introduces potential biases, as these datasets may not fully capture the dynamic nature of HF progression. Future research should prioritize prospective designs and longitudinal data to enhance model validity and generalizability. Furthermore, HF is a dynamic chronic condition characterized by periods of exacerbation and relative stability. This non-linear progression complicates risk prediction, as symptom exacerbation may not solely indicate disease progression but can also be influenced by social and economic determinants of health. Factors such as socioeconomic status have been shown to significantly impact readmission and mortality rates in HF patients, adding complexity to predictive modeling in this population [97].

Additionally, the heterogeneity in study designs, patient populations, and machine learning models complicates the generalizability of our findings. The heterogeneity of the data included in our meta-analysis reflects the inherent variability in study designs, patient populations, and predictive variables across the selected studies. Such diversity can introduce potential biases and impact the generalizability of the findings. Differences in study methodologies, such as variations in inclusion criteria, sample sizes, and follow-up periods, contribute to inconsistencies in reported outcomes. Furthermore, the use of distinct machine learning algorithms and predictors, ranging from clinical variables to imaging and laboratory data, increases the variability in model performance. This heterogeneity was quantified using the I² statistic, which highlighted substantial variability in some analyses, necessitating the use of a random-effects model to account for inter-study differences. Addressing these disparities is crucial for improving the robustness and applicability of meta-analytic conclusions. Furthermore, the variability in the reporting of predictive variables and outcomes across studies posed challenges in data extraction and pooling, which may affect the robustness of our meta-analysis. Additionally, specific variables incorporated within the models were not systematically reviewed, which may influence the interpretability and generalizability of the findings. Future studies should focus on a detailed evaluation of the predictors used in these models to identify key variables driving performance and to ensure alignment with clinical priorities. While we focused on AUC as the primary outcome measure, other important metrics such as sensitivity, specificity, and clinical utility were not extensively analyzed, which could provide a more holistic view of model performance. Importantly, we did not assess the individual contributions of variables within the models in our meta-analysis, which limits our understanding of the specific factors driving model predictions. These limitations highlight the need for standardized methodologies and prospective validation to enhance the reliability and applicability of machine learning models in HF prognosis.

Conclusions

In conclusion, the current systematic review highlights the substantial potential of ML models in predicting readmission and mortality outcomes in HF. These findings underscore the promise of ML algorithms in enhancing prognostic accuracy, leading to more personalized and effective patient management strategies in HF. Despite this promise, challenges such as model interpretability, generalizability, and integration into clinical practice remain. Addressing these issues requires a comprehensive regulatory framework and continued refinement of ML techniques to fully harness their potential in improving HF prognosis and patient outcomes.

Fig. 1

Prisma flowchart illustrating the process of screening

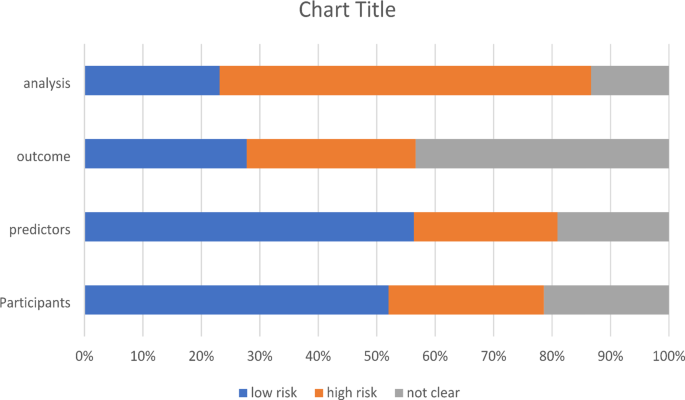

Fig. 2

Percentage staked chart regarding risk of bias assessment

Fig. 3

Forest plots reporting the results of the meta-analysis of the accuracy of machine learning models for predicting mortality in heart failure (HF) patients. (1) It represents the pooled area under the curve (AUC) values for the Random Forest model across multiple studies, (2) It shows the pooled AUC for the Logistic Regression model, and (3) It presents the pooled AUC for the Support Vector Machine model. (4) It shows the pooled accuracy values for the Gradient Boosting model. Each plot includes individual study estimates with corresponding confidence intervals and study weights. The diamond at the bottom of each plot represents the overall pooled estimate with its confidence interval

Fig. 4

Forest plots summarizing the meta-analysis of the accuracy of machine learning models for predicting mortality in heart failure (HF) patients. (1) It represents the pooled area under the curve (AUC) values for the K-Nearest Neighbors model across multiple studies, (2) It shows the pooled AUC for the Lasso Regression model, (3) It presents the pooled AUC for the Decision Tree model, and (4) It shows the pooled AUC for the Neural Network model. Each plot includes individual study estimates with corresponding confidence intervals and study weights. The diamond at the bottom of each plot represents the overall pooled estimate with its confidence interval

Fig. 5

Forest plots reporting the results of the meta-analysis of the accuracy of machine learning models for predicting mortality in heart failure (HF) patients. (1) It represents the pooled accuracy for the Random Forest model across multiple studies, (2) It shows the pooled accuracy for the Logistic Regression model, and (3) It presents the pooled accuracy for the Support Vector Machine model. (4) It shows the pooled accuracy values for the Gradient Boosting model. Each plot includes individual study estimates with corresponding confidence intervals and study weights. The diamond at the bottom of each plot represents the overall pooled estimate with its confidence interval

Fig. 6

Forest plots summarizing the meta-analysis of the accuracy of machine learning models for predicting mortality in heart failure (HF) patients. (2) It shows the pooled accuracy for the Lasso Regression model and (4) It shows the pooled accuracy for the Neural Network model. Each plot includes individual study estimates with corresponding confidence intervals and study weights. The diamond at the bottom of each plot represents the overall pooled estimate with its confidence interval

Fig. 7

Forest plots reporting the results of the meta-analysis of the accuracy of machine learning models for predicting mortality in heart failure (HF) patients. (1) It represents the pooled sensitivity for the Random Forest model across multiple studies, (2) It shows the pooled sensitivity for the Logistic Regression model, and (3) It presents the pooled sensitivity for the Support Vector Machine model. (4) It shows the pooled sensitivity for the Gradient Boosting model. Each plot includes individual study estimates with corresponding confidence intervals and study weights. The diamond at the bottom of each plot represents the overall pooled estimate with its confidence interval

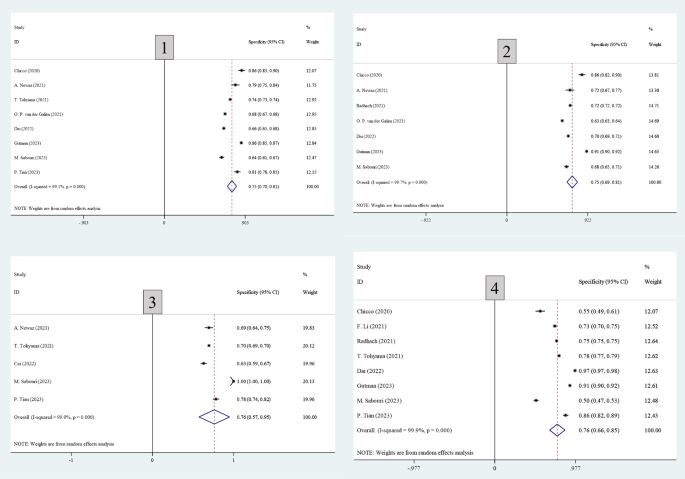

Fig. 8

Forest plots reporting the results of the meta-analysis of the accuracy of machine learning models for predicting mortality in heart failure (HF) patients. (1) It represents the pooled specificity for the Random Forest model across multiple studies, (2) It shows the pooled specificity for the Logistic Regression model, and (3) It presents the pooled specificity for the Support Vector Machine model. (4) It shows the pooled specificity for the Gradient Boosting model. Each plot includes individual study estimates with corresponding confidence intervals and study weights. The diamond at the bottom of each plot represents the overall pooled estimate with its confidence interval

Fig. 9

Forest plots reporting the results of the meta-analysis of the accuracy of machine learning models for predicting hospital readmission in heart failure (HF) patients. (1) It represents the pooled area under the curve (AUC) values for the Random Forest model across multiple studies, (2) It shows the pooled AUC for the Logistic Regression model, and (3) It presents the pooled AUC for the Support Vector Machine model. (4) It shows the pooled accuracy values for the Gradient Boosting model. Each plot includes individual study estimates with corresponding confidence intervals and study weights. The diamond at the bottom of each plot represents the overall pooled estimate with its confidence interval

Fig. 10

Forest plots summarizing the meta-analysis of the accuracy of machine learning models for predicting hospital readmission in heart failure (HF) patients. (1) It represents the pooled area under the curve (AUC) values for the K-Nearest Neighbors model across multiple studies, (2) It shows the pooled AUC for the Lasso Regression model, (3) It presents the pooled AUC for the Decision Tree model, and (4) It shows the pooled AUC for the Neural Network model. Each plot includes individual study estimates with corresponding confidence intervals and study weights. The diamond at the bottom of each plot represents the overall pooled estimate with its confidence interval
